Boyles Machine

Anesthesia Delivery

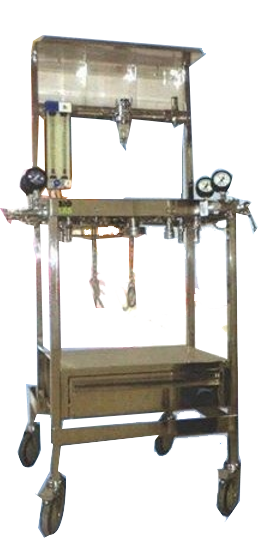

Boyles Machine

  • Construction: Trolly made by ridge steel section electrostatically power coated or stainless steel.
  • Top tray provided at eye level for keeping monitoring equipments, wide clean stainless steel top.
  • Oxygen flowmeter callbrated from 100cc /min to 10 ltrs. Minute & Nitrons oxide flow meter from 200cc/min to 12 liters/min down stream receipt of oxygen.
  • Emergency oxygen flush value at table to give 35-60 ltrs/min for emergencies.
  • Cylinder yokes: pin indexed yokes one each of oxygen & nitrous oxide. High efficiency regulators for reliability one each of oxygen &nitrous oxide.
Safety Features

Emergency oxygen flush Nitrous oxide shut off in the event O2 failure

Dimesion

Height Depth Width 152cm 60cm 65cm weight App. 45kg

  • One Bain Circut. Provided with machine.
  • One Mox Regulator. Provided with machine.

Boyles Machine Economy Model

  • Halothane Veporiser.
  • 230 m.m long tube rotating bobbin rotameters.
  • Large/diameter gauges for N2O
  • Alarm system
  • Powder Coating frame
  • Drawer for insturments
  • Antistatic wheel front with fine break
  • Top tray at eye level.
  • Non-return cum pressure relief value.
  • Stainless Steel Table top Tray
  • Large diameter gauges for O2.
  • Oxygen yokes for cylinders
  • Antistatic wheel back side without break.
Anesthesia Delivery
Anesthesia Delivery

Construction

  • Trolly made by tublar section electrostatically powder coated. Extended platform at rear for one 10 ltr. capacity cylinder.
  • Top tray provided at eye level for keeping monitoring equipments. Wide clean stainless steel top.
  • Oxygen flowmeter calibrated from 100 cc/min to 10ltrs. minute & Nitrous oxide flow meter from 200cc/min to 12 liters/min down stream receipt of oxygen.
  • Cylinder yokes: Pin indexed yokes one each of oxygen & nitrous oxide. High efficiency regulators for reliability one each of oxygen & nitrous oxide.
Safety Features

Emergency oxygen flush Nitrous oxide shut off in the event O2 failure

Dimesion

Height Depth Width 152cm 43cm 55cm weight App. 36kg

  • One Bain Circut. Provided with machine.
  • One Mox Regulator. Provided with machine.

This unit oxygen failure alarm and N2O cutt-off system. When the pressure of oxygen falls down less then 1 L.P.M the machine will not work N2O gas will cut down, oxygen failure alarm automatic will be o. it is lengthy alarm you have to close N2O cylinder to stop alarm.

Extra Features

  • Construaction
  • Change over unit: For change over open circuit to closed circute [circel] emergency oxygen outlet at table level
  • Non Return Cum Pressure Relief value
  • Pressure guage: Superior quality 63mm large dameter.
  • Cylinder Yokes Regulators
  • Table Top Tray
  • Mobility
  • Self Sealling value
  • Dimension
  • Provision for (Optional)
  • Provision for : 2 Extra Vaporizers
